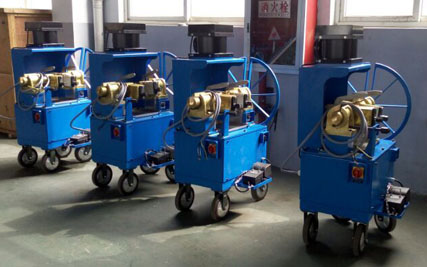

Wire rope annealing machine

RD wire rope annealing machines twists the wire rope off by annealing.
They are designed to manually adjust the elongation when twisting off the wire rope, providing the operator to form the end to desired shape.
Our manual wire rope annealing machines are are extremely easy to operate.
The clamping jaws are designed not to require altering of different wire rope diameters.

The wire rope annealing machine can also be made mobile with optional wheels.

These wire rope annealing machines are mainly applied by steel rope manufacturers and customers. (e.g. Port, jetty, elevator maker etc.) RD series machines have exported to UK, Poland, Turkey, Latvia, Russia, Dubai, Romania, Chile, Iseal and other countries.

Product Features:
1. Cleverish in shape and convenient to move.
2. With a wide range in melting diameter, the steel ropes can be melted without replacing any parts within the range of prescribed diameter.
3. Easy to operate,no spanner is needed for tightening device, and the welding head is nice in appearance.
4.Low working power, energy saving and safe in use.

Technical Parameters of wire rope annealing machine

Model No.	RD-1010	RD-1011	RD-1012	RD-1013
Rated Power	5KVA	15KW	75KW	100KW
Cutting diameter of wire rope	3-16mm	6-28/32mm	10-40mm	20-60mm
Dimensions	700x400x1200mm	800x750x1430mm	1300x1100x1600mm	1500x1250x1750mm
Weight	100kgs	300kgs	720kgs	850kgs
